DIN Rail-Mounted 0-5V|0-10V to 4-20mA Loop Powered Converter with 3kv Isolation
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
DIN3 ISO V-4-20mA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
0-5V/0-10V/0-75mv, etc |
| Output Circuit: |
4-20mA Loop Powered |
| Auxiliary Power: |
Non |
| Installation: |
35mm DIN Rail-Mounted Type |
| Operating Temperature Range: |
-45-85 Celsius Deg. |
| Usage: |
Consumption Sensor, Acceleration Sensor, Ray Sensor, Position Sensor, Liquid Level Sensor, Speed Sensor, Angular Velocity Sensor, Thermal Sensor, Pressure Sensitive Sensor |
| Brand: |
Sunyuan Sz |
Product Description

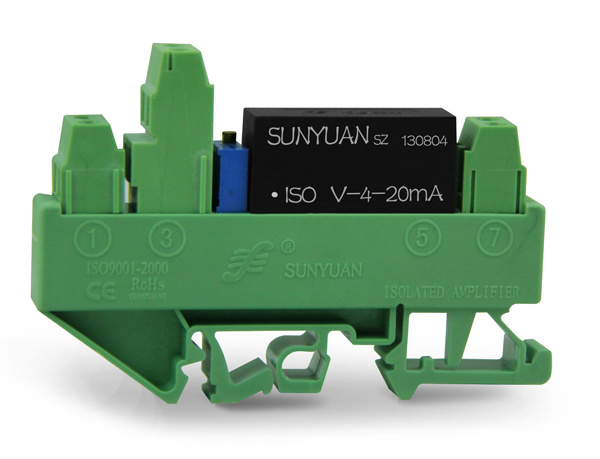

Super-slim DIN Rail-mounted Voltage to 4-20mA Loop Powered Converter with 3KV Isolation
ISO V-4-20MA Series
Voltage to 4-20mA Loop Converter Applications:>> Isolated power distribution and conversion on voltage signal from two-wire sensors.
>> Precision error grade: 0.1(non-isolation type), 0.2(isolation type)
>> Linear processing and long-wire compensation circuits inside (Non-linearity <0.05%).
>>Isolation between I/O: 3KVDC full isolation.
>> Range of the power supply to sensor:12-32VDC
>> Small input equivalent resistance,high linearity.
>> Small size IC package and DIN rail 35 installation
>> Industrial operating temp. Range: - 25ºC ~ + 70ºCVoltage to 4-20mA Loop Features>>PLC/DCS collects voltage signals directly from sensors.
>>Displacement, potentiometer signals isolated acquisition and control.
>> Industrial site ground wire interference inhibition
>> Convert weighing signal into standard 4-20mA analog signal
>> Pressure sensor signal collection and power distribution.
>> Analog signal long-distance transmission without distortion.

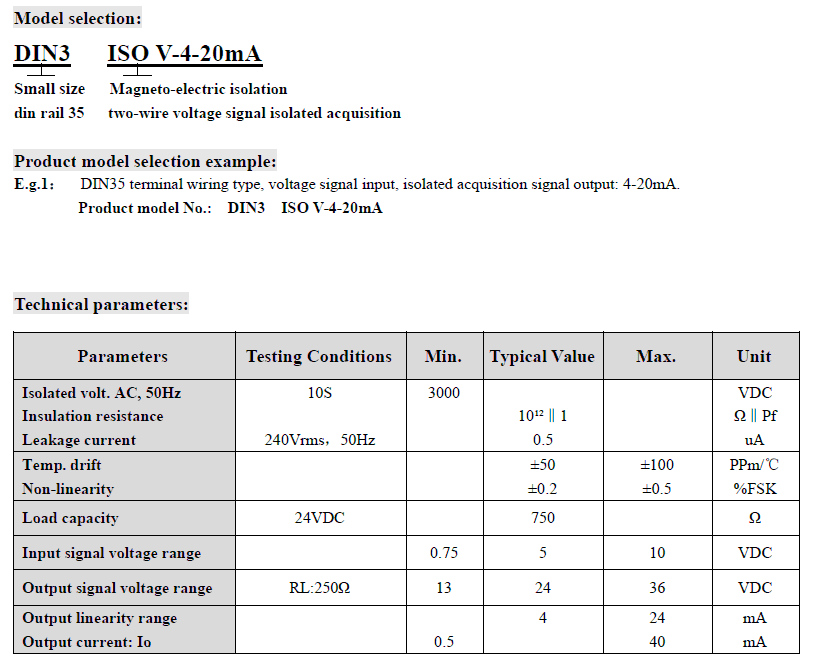

>>Distribution of voltage signal from electric-bridge (weighing) detecting circuits.Voltage to 4-20mA Converter Model Selection & General Parameters:

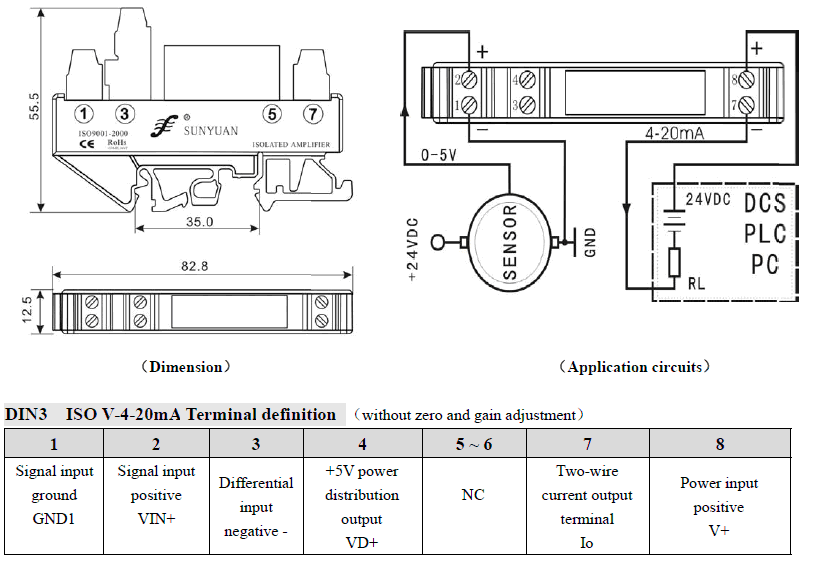

Voltage to 4-20mA Loop Converter Terminal Definition:
Note: For detailed parameters, please inquire us for data sheet.
